In this piece, I'll discuss the wide range of clamps and grabs that are available, from plate clamps for lifting sheet metal to block grabs that can easily lift concrete blocks by mounting on cranes, teleporters, or forklifts. We also offer clamps for lifting and moving rails or beams.
CLAMPS WE PROVIDE ARE:
- Round stock grabs are used to lift and move big tubing and round piping.
- Plate clamps were used to transport metal sheets.
- To transport and lift drums, use a drum lifter clamp.
- Metal girders can be moved and transported using girder clamps.
- For heavy-duty industrial applications, rail clamps that can lift a single rail or our bigger rail clamps that can handle up to 12 rails at once are available.
Since there are so many different applications for clamps, we have a wide selection in store. In this piece, I'll discuss what makes these clamp products a good choice when it comes to lifting on a jobsite because having the appropriate tools is essential for both safe and effective operations. I want to assist you choose which things to buy and explain why they might be useful to you and your workplace by sharing some important facts about these products that you might not be aware of in this post.
PLATE CLAMPS
To meet your individual demands, plate clamps are available in a range of shapes and sizes, including vertical, horizontal, broad jaw, twin jaw, and non-marking plate clamps. These plate clamps are generally used for moving steel plates and sheet metal of different sizes; some clamps are only for moving thin metal sheets, while others may be adjusted to move larger, thicker sheets. These clamps offer excellent lifting maneuverability since they can twist and raise metal sheets through 180 degrees. We provide plate clamps made by Camlok, which have a stellar reputation, are easy to maintain, and are available with easy-to-find replacement parts.
DRUM LIFTING CLAMPS
We provide more than 7 different varieties of drum lifters; each has unique features and skills that make it a superb solution for the job. I'll concentrate on fully automatic drum lifter tongs for this category of clamps because they have a wide range of lifting applications and some fantastic features that I'll go over presently.
Drums can be taken up from an overhead position and hoisted vertically, or they can be lifted using a forklift truck or even thrown beneath an overhead crane hook. This product is a fantastic option if lifting from the side is not feasible at your workplace because it favors easy vertical lifting. This drum lifter is exceptional since it is totally automatic, allowing the forklift driver to do the entire drum lifting process without ever leaving the forklift cab.
Undoubtedly, having this capability on a drum lifter will speed up and improve productivity while decreasing downtime. Both steel and plastic drums with a 210 liter capacity can be carried by these lifters, which have capacities of 500 kg and 1000 kg, respectively. These drum lifters are constructed of mild steel and coloured yellow for increased high visibility.
INSPECTING PLATE CLAMPS
They need periodic, routine maintenance and inspections, just like any piece of equipment that is used to lift and move things.
Lifting clamps need to be inspected and maintained quite frequently, just like any other piece of machinery. Depending on how frequently they are used, clamps should be inspected every one to four weeks. To guarantee smooth performance, plate clamps should be frequently degreased, cleaned, and lubricated. It is crucial to examine the teeth, handle, shell plates, and additional parts like bolts, nuts, and chains when evaluating clamps.

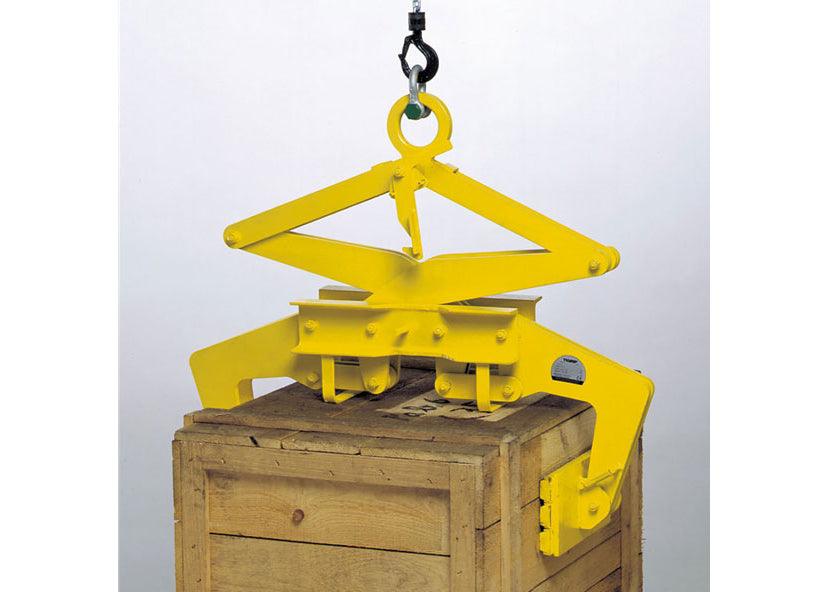

LIFTING BLOCK GRABS
The block grab, often referred to as a mechanical scissor grab, is intended for the secure movement of heavy loads of palliated bricks. All varieties of concrete goods, including slabs, block kerbs, stones, steel-strapped bricks, and even paving blocks, can be handled by them. These block grabs are only intended for rectangular loads, and their load capacity should not be exceeded. Block grabs are offered with load lifting capacities ranging from 200 kg to 1000 kg. With parallel surfaces that can bear clamping pressure twice as high as the mass being lifted, this class of block grabs is made to move materials.
They may have jaws with teeth for added grip or jaws with rubber inside. Consider the substance being lifted when making your purchase; if it can be plainly marked, avoid using jaws with teeth. These jaw clamps offer a lot of flexibility because the jaw opening on some models may reach 1100mm. It's crucial that the surface of the object being lifted be dry, clean, and free of oil and grease when using versions equipped with rubber pads so that the load doesn't break loose in any way. Block grabs have been around for a while and are the ideal equipment for the job when it comes to lifting loads of other blocks and concrete.
ROUND STOCK GRABS
The Camlok Round Stock Grab has a variety of weight capacities. The stock grabs have a large variety of lifting capacities and are made to take up pipes, tubes, rolls, and other similar round materials with a diameter of up to 600mm. They provide safe lifting and are really simple and straightforward to use. It is crucial to keep in mind that the surfaces of the cargo being carried should be dry, spotless, and devoid of grease and oil when utilizing the protective lining.
OPERATIONS RELATED TO LIFTING CLAMPS
The self-actuating spring used by Camlok's plate clamps engages when the clamp is fastened to the plate that needs to be lifted. The weight being lifted should be near to the clamp's working load limit (WLL) and should weigh no less than 20% of the clamp's WLL when utilizing some of Camlok's plate clamps.
GIRDER CLAMPS
Some girder clamps are made to transport girders in the "I" configuration as well as stack girders horizontally and vertically. They are frequently used by steel stocks. One clamp can be used for small metal girders, but two girder clamps and a spreader beam should be used for bigger metal girder lifting or transportation. Using girder turning clamps is primarily used to move and rotate steel girders across 90 degrees. These are an excellent product for shifting girders because they are lightweight and easy to use, allowing for straightforward load lifting.
SINGLE RAIL CLAMPS
The CR Single rail clamp is made for lifting rails securely and safely and are available in many capacities. It fits the majority of rail section types now used in industry. These clamps' narrow profiles allow for attachment to a single rail when two rails are placed next to each other. The safety lock on the CR Rail grab is actuated by a spring mechanism and locks onto the rail head for enhanced security. These clamps are ideal for both small-scale activities and industrial uses.
FIXED MULTI RAIL GRABS
Depending on the type, the MR Multi-rail grabs are ideal for lifting rails grabs 3 to 12 at once, enabling quick bulk handling of a particular rail segment. By rotating the top clamp body and the swiveling toes beneath the rail head, which lock the rails to the clamp, a strong rubber-lined beam is pressed against the top of the rail head to secure it in place. All rails that are being raised should be the same size, and the rubber lining on the clamp avoids damage or marking to the rail head.
INTERCHANGEABLE MULTI RAIL CLAMPS
These multiple rail grabs are made to bulk handle 4 to 8 rails at once and raise and carry rails. The benefit of having removable, modular comb parts distinguishes interchangeable multi rail grabs from fixed multi rail grabs. The same scissor mechanism can then be used to raise and move individual rails by combining different comb parts to fit those rails. It is possible to buy extra comb components separately. On the webpage, there are four options to select from: Top manual latch, Comb manual latch, Top auto latch, and Comb auto latch. These rail grabs are designed for heavy-duty sectors that demand powerful lifting skills and the ability to pull numerous rails at once.
SUMMARY
Clamps come in a variety of shapes and sizes and offer a wide range of lifting characteristics. We have a wide selection of products for lifting drums or rail clamps that you can check out. Having the appropriate tools for the job is necessary when lifting metal rails, drums, or sheets. This is crucial because it guarantees the effectiveness and security of lifting huge loads. The productivity and efficiency of your workplace will increase if you have instruments that make lifting simple and straightforward. While using these tools should only be done by trained operators, safe working load restrictions should be observed. The variety of lifting equipment offered by Camlok is unmatched, and each one is accompanied by a safety certificate and has undergone testing to guarantee that all safety criteria are met. To locate a product that will meet your needs, feel free to browse our store.
