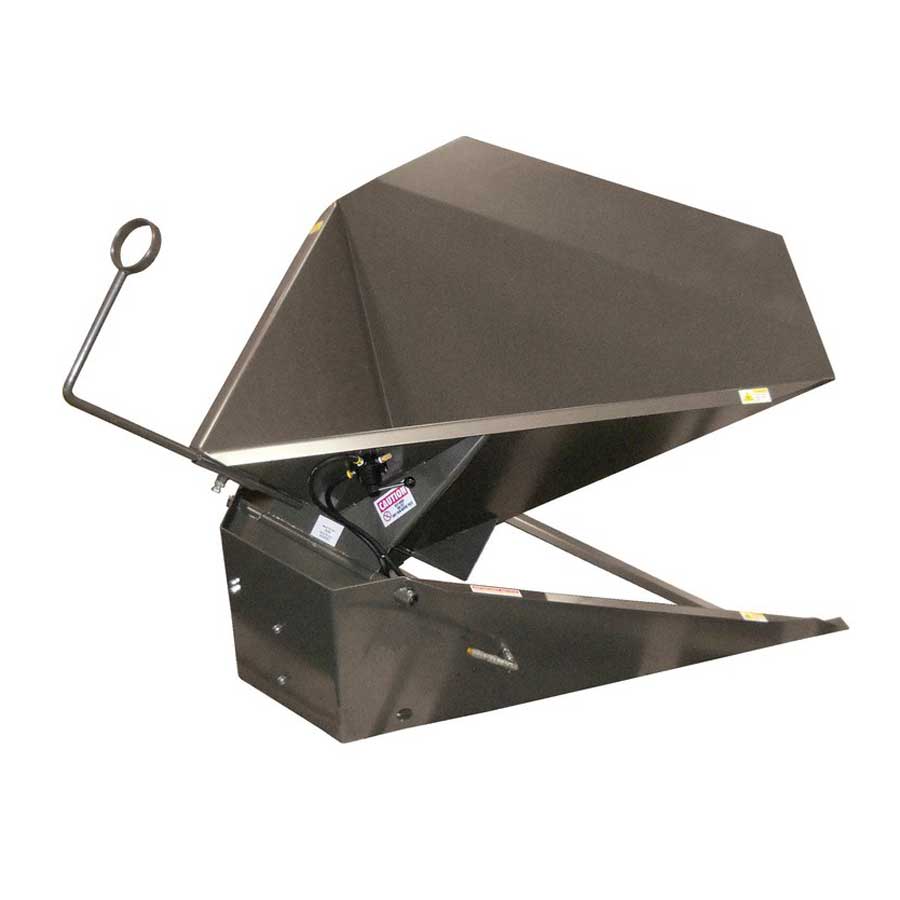

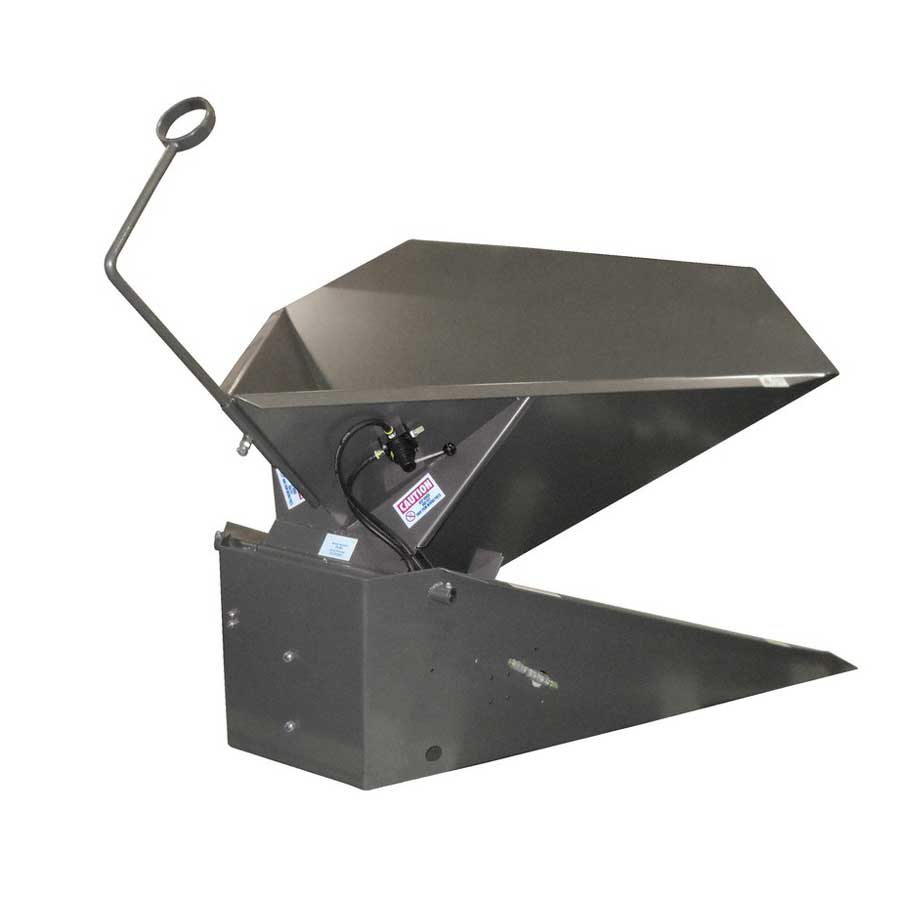

Vestil Air Corner Tilter

The air corner tilter is a floor level multi-ply airbag powered tilter that provides ergonomic loading and unloading of bulk containers, gaylords, or crates. It is accessible by either pallet or fork truck and is activated by a hand operated control lever. The air bag inflates tilting and the material shifts to the corner of the container where it can be easily removed by manual or mechanical means. The regulator is factory preset to begin rotating the container when the weight reaches approximately 900 pounds. An included ratchet safety stop feature is a patented design, built to prevent the pivot bucket from dropping in the event of a pneumatic system failure. Includes adjustable vacuum pick-up wand holder (3-1/2" inside Diameter) and provides 12 of adjustment to accommodate various container heights. Like all our Trash Can Dumpers, the Corner Tilter comes with documentation and certification.

Features & Benefits
• Provides ergonomic loading and unloading of bulk containers.
• Accessible by pallet or fork truck and is activated by a hand lever.
• Adjustable air regulator to a predetermined pressure.
• The pressure adjusts to the weight of your application.

Pictures are for demonstration purposes only.
