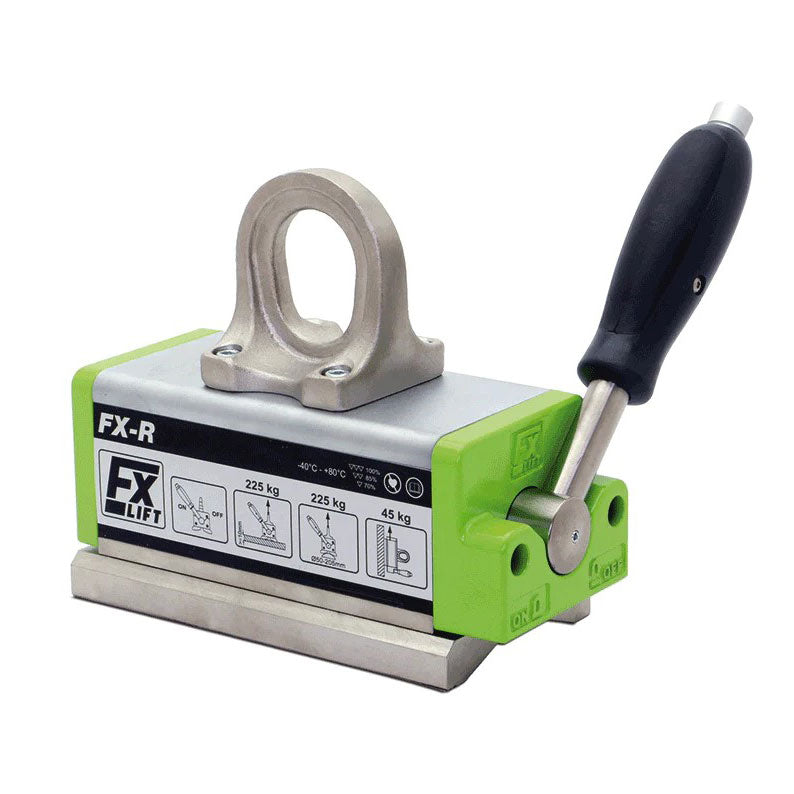

FXR Permanent Lifting Magnet (For Round Material)

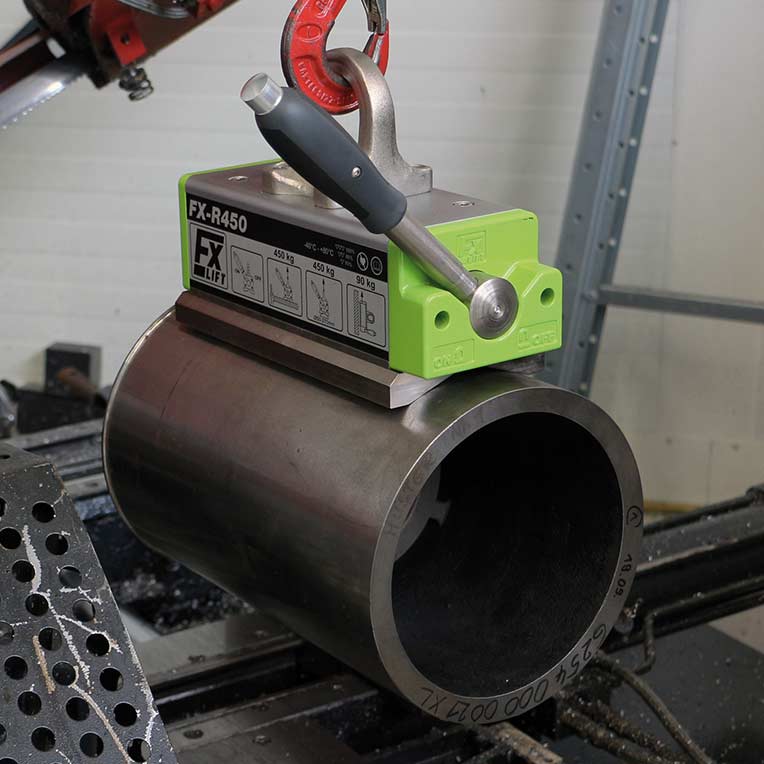

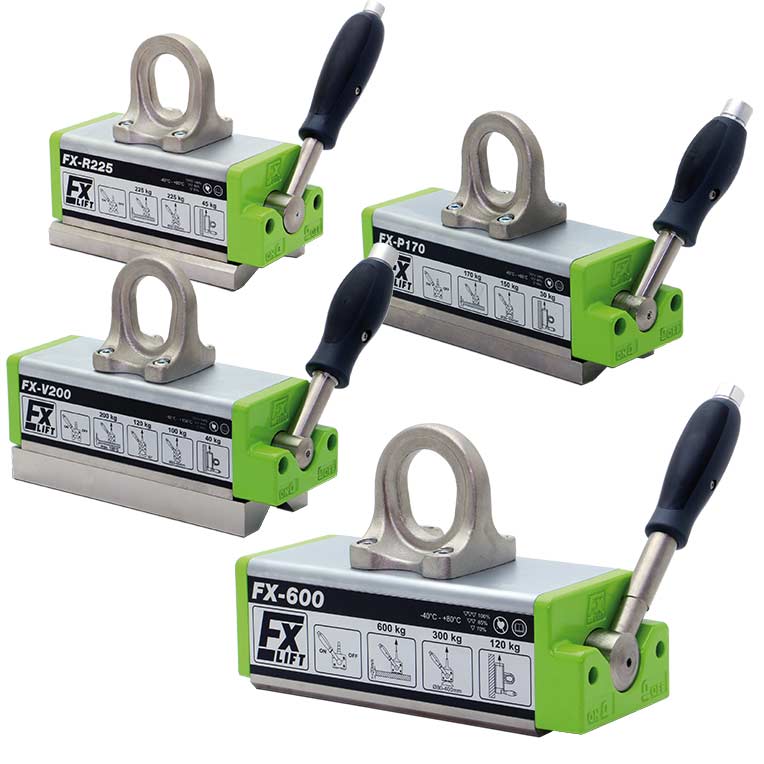

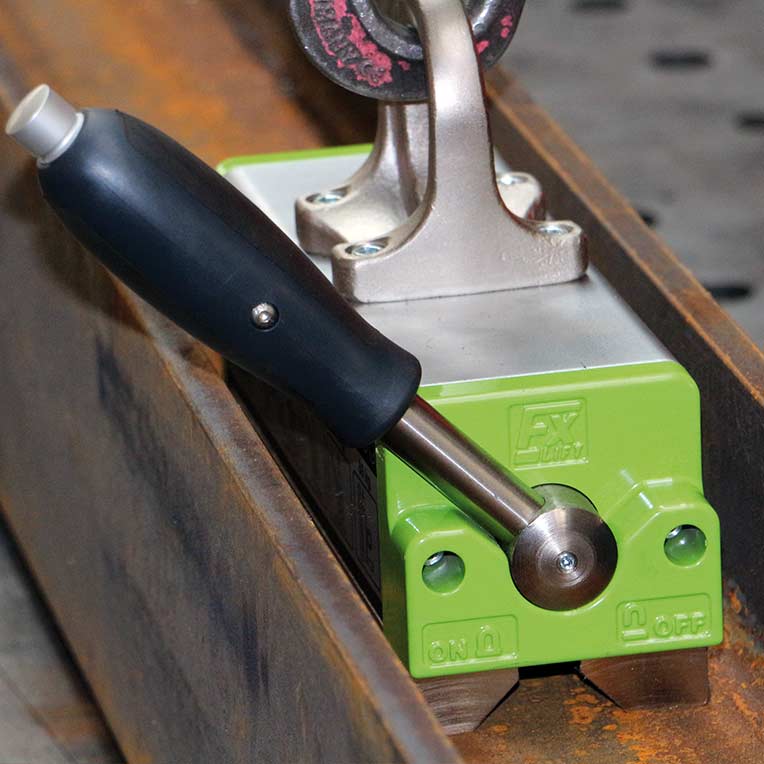

These FXR Permanent Lifting Magnets are ideal for when you’re mostly lifting round/curved surfaces such as shafts, thick walled pipe, or billet, but occasionally need to lift flat material. Specially designed pole shoes provide a deep penetrating magnetic field and part stability. Each line of lifting magnets in the FX family of products has been specifically designed for maximum performance by user application. The size, shape and dimension of the parts you'll primarily be lifting - whether flat, curved, or circular-shaped -  will determine the best FX lift magnet for you. On all magnets in the series, the unique handle design only requires a 90° rotation to either engage or disengage the magnet (versus the 120° or even 180° required on most on/off lifting magnets), making it easy for operators to use in applications where the magnet is lifting something from inside a bin or a deep trough. The handle also features a positive lock-on/lock-off mechanism that requires the operator to manually switch between the two states. This prevents the handle from being turned only partially on, or from being accidentally bumped to the “off” position and dropping the load pre-maturely. Like all our Lifting Magnets, these FXR Magnets come with documentation and certification.

Features & Benefits
• ON/OFF, Rare-Earth Permanent Magnet.
• Handle locks in both the On & Off positions for safety.
• Lifts round/curved surfaces such as shafts, thick wall pipe, billets and occasional flat material.
• Heat resistant up to 180° F (82° C).
• 3:1 design factor.
• Meets 2018 ASME B30.20 BTH-1 Design Category B Service Class.

Note: Images are for illustration purposes, product may differ in size.
