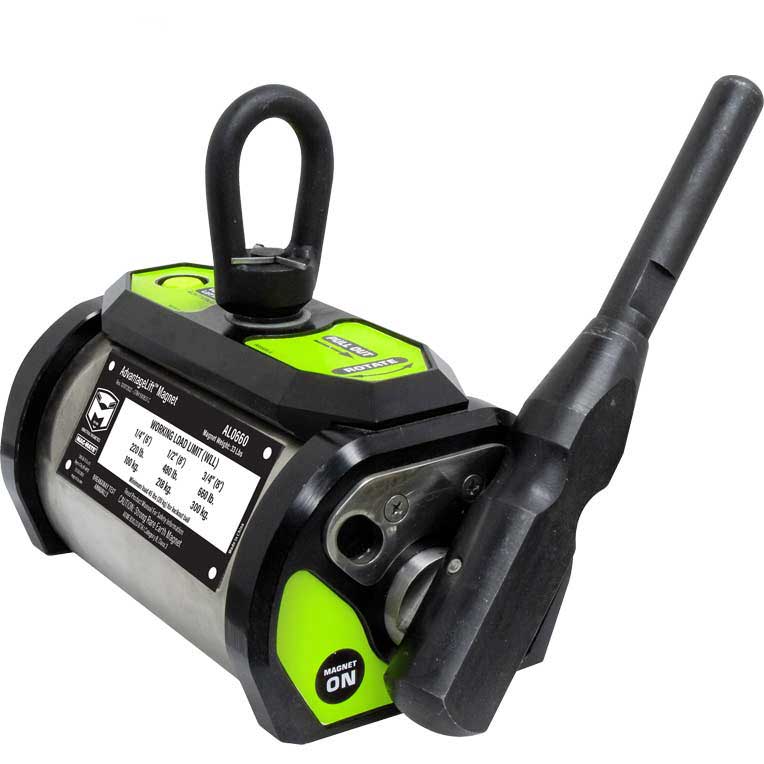

MAG-MATE® AdvantageLift Magnet

Step into a new era of lifting magnets with the MAG-MATE® AdvantageLift, a true game-changer that outshines every other lift magnet available. Crafted to thrive in the harshest industrial environments, this "On/Off" Permanent Rare Earth Lift magnet is your ultimate solution for both durability and safety, safeguarding your workers and equipment with unmatched precision. Our MAG-MATE® AdvantageLift boasts an ingeniously designed handle that sets a new standard for ergonomic excellence. Unlike traditional magnets that demand tugging handles or fumbling with buttons and levers, this handle moves laterally in and out instead of pulling the handle or pressing a release button or lever.

While other magnets are not equipped to allow use a "cheater bar" to turn a magnet "On" and "Off," this lift magnet can accommodate a tubular bar or pipe. This reduces the need to bend over to turn the magnet "On" and "Off" when lifting steel off pallets or the floor. Removal of any "cheater bar" or pipe during the lift process is recommended to prevent damage to the handle and other items the bar could encounter. Second, the lifting bail is the "lock-out" feature for this magnet. When magnet is under load, the lifting bail lock-out prevents the handle from being rotated to the "Off" position. This feature works on the vertical lifting bail as well. Like all our Lifting Magnets, these AdvantageLift Magnets come with documentation and certification.

Features & Benefits
• "On/Off" Permanent Rare Earth Magnet.
• Handle moves laterally instead of pulling, pressing buttons or levers.
• Locking lifting bail(s) prevents accidental load release during lift.
• Recessed (protected) labels for extended life.

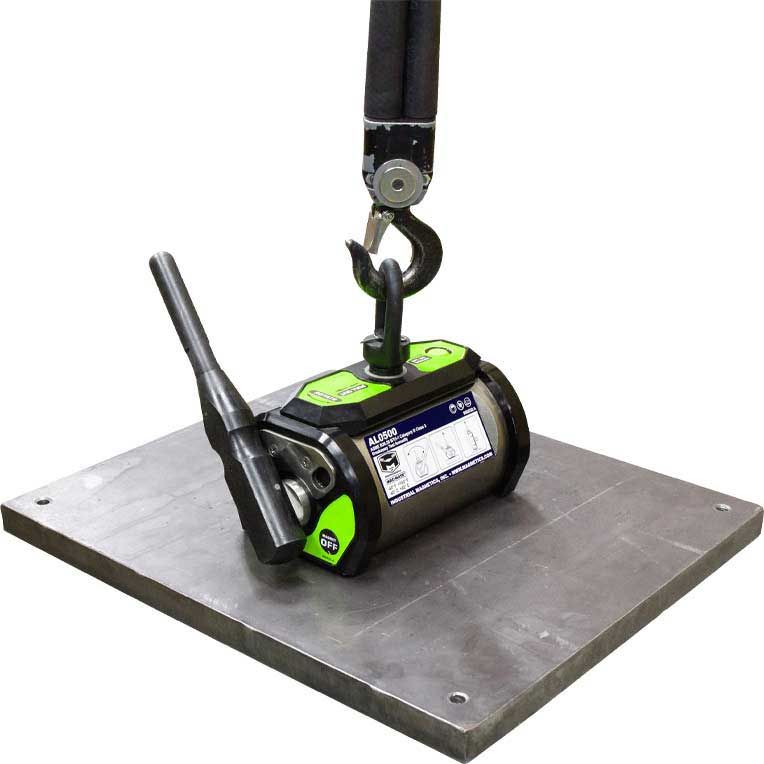

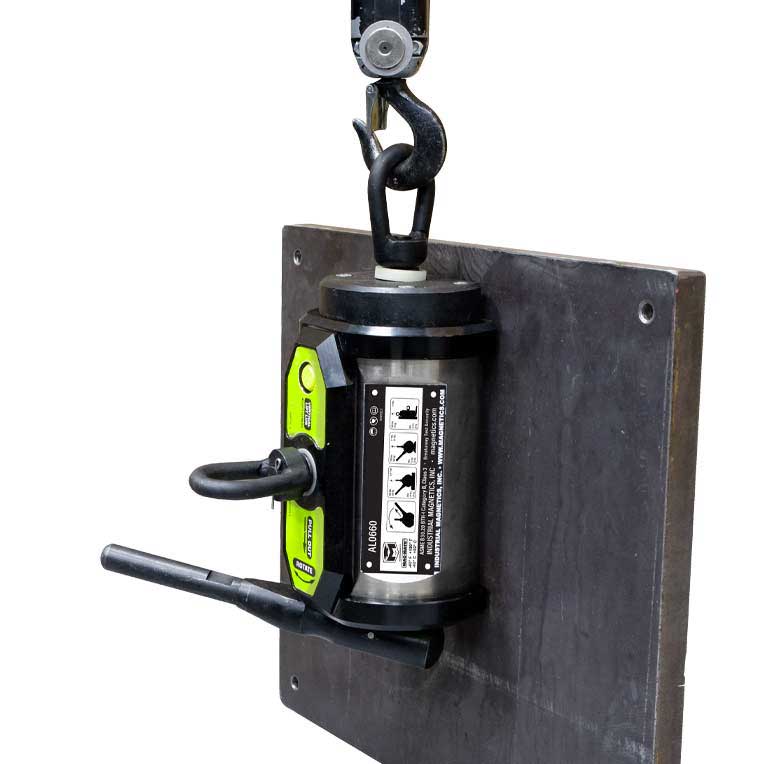

• Lifts flats both horizontally and vertically with Vertical Lift Bail.
• Supports custom pole shoes (1/4"-20 Tapped Holes, 1/2" deep).
• Swiveling Lift Bail(s).
• Operating temperature range of -10°F (-23°C) to 180°F (82 °C).
• 3:1 Design Factor.
• ASME B30.20 BTH-1 Design Category B Service Class 3.

Note: Images are for demonstration purposes, product may differ in appearance.
Contact us for more options.
