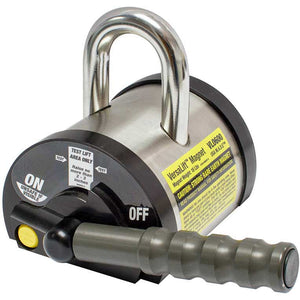

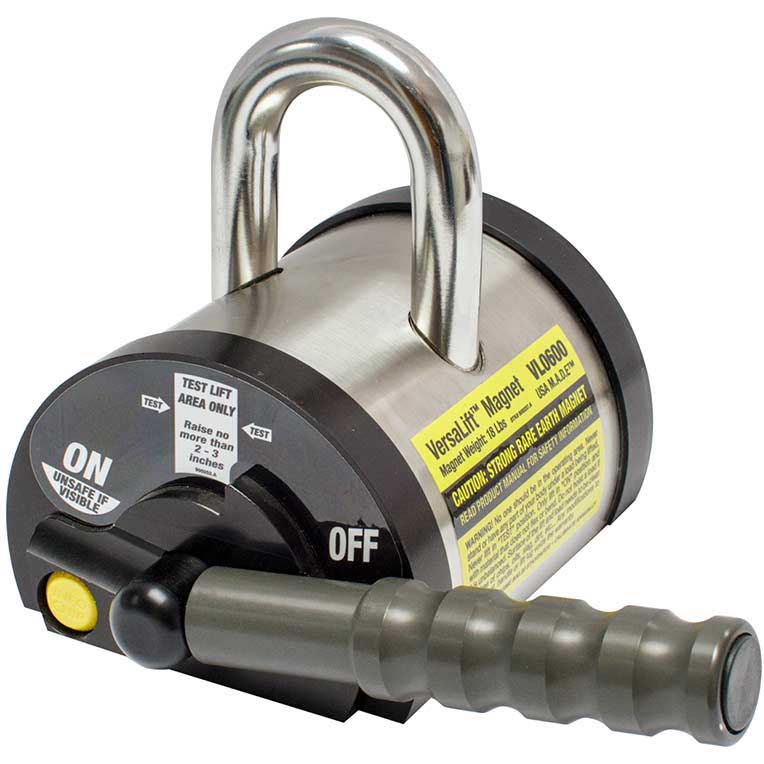

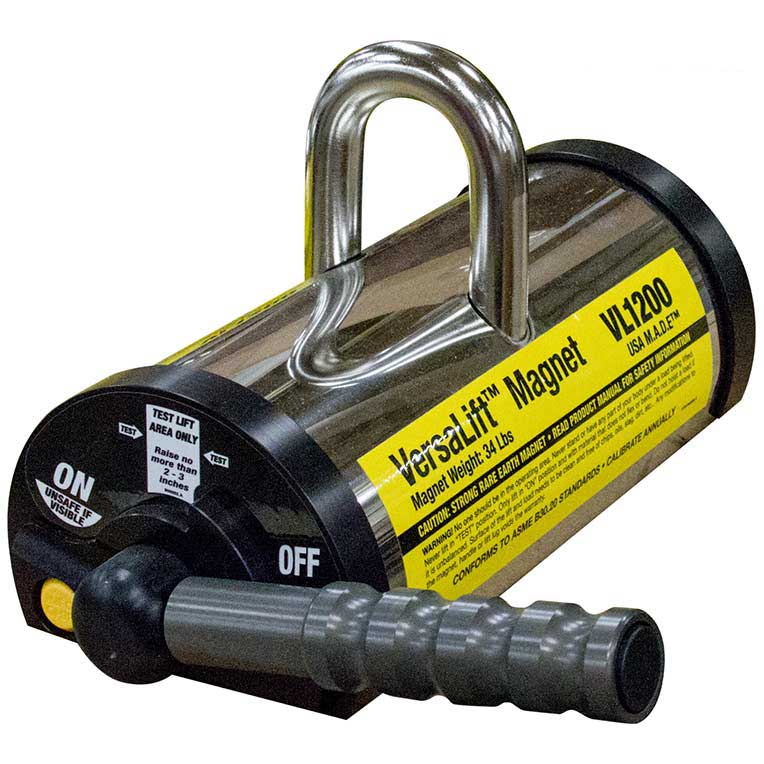

MAG-MATE® VersaLift Magnet

Compact and powerful MAG-MATE® VersaLift Magnets for use on flat or round surfaces. Contains an internal On/Off release device that does not contact or damage the surface of the part. Locking On/Off handle prevents the handle from being bumped "On" or "Off", combined with a permanent magnetic lift, eliminates the fear of dropping the load. More features than other lifts and manufactured in the USA. Like all our Lifting Magnets, these VersaLift Magnets come with documentation and certification.

Test Load Feature
To operate Test Feature, pull spring loaded handle out and rotate it to the "TEST" position. Lift load approximately 2-3 inches to verify the magnet has the capacity to lift your load. Once verified, place load back down and turn the handle to the "ON" position. Never complete entire lift operation in "TEST" position.

Features & Benefits
• Rare Earth Permanent Magnet.

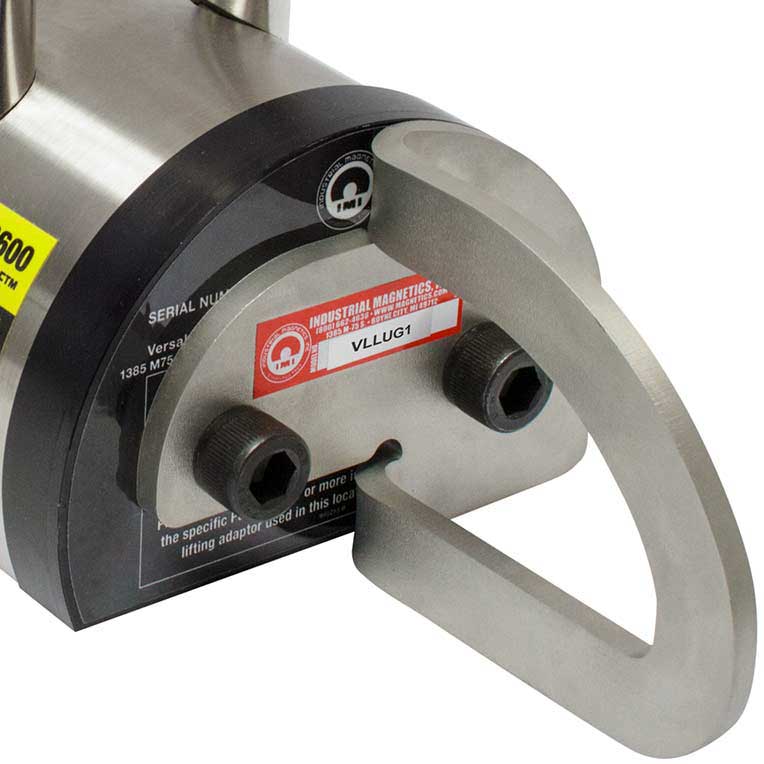

• Vertical Lift Capable using the optional Lift Lug attachment.
• Locking On/Off handle & Test load feature.
• Supports custom pole shoes (4, 1/4"-20 Tapped Holes, 1/2 inch deep).
• Lifts flat or round loads (see chart below).
• Stationary Lift Lug(s).
• Heat resistant up to 180°F (82°C).
• 3:1 Design Factor.
• ASME B30.20 BTH-1 Design Category B Service Class 3.

Images are for display purposes, product may differ in appearance.
